Tungsten Wire Mesh and Molybdenum Wire Mesh

WIDIT weaves tungsten and molybdenum wires into mesh, utilizing their excellent high-temperature performance for components within high-temperature furnace chambers.

Note: Specifications can be customized according to customer requirements.

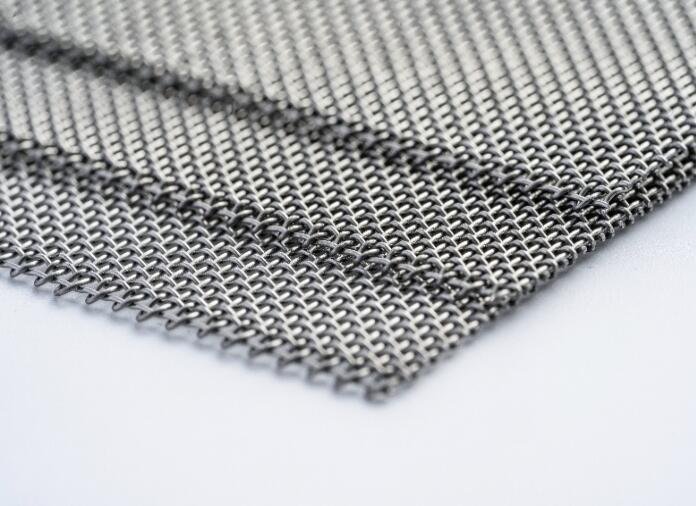

Tungsten Wire Mesh

Material: Bright tungsten wire/black tungsten wire (with a tungsten content of over 99.95%)

Hole Shape: Square, Rectangle

Aperture: 0.02mm-23.7mm

Mesh Count: 0.3 mesh-250 mesh

Width: 5mm—6000mm

Process: Tungsten wires are interwoven in a warp and weft cross-weaving process.

Weaving Method: Plain weave, Twill weave

Surface: ①Black surface ②Chemically cleaned or electrolytically polished (metallic white luster)

Applications of Tungsten Mesh: The product features uniform mesh holes and is used for heat treatment support mesh, vacuum furnace grid mesh, electromagnetic shielding mesh, RF electromagnetic shielding, vacuum furnace thermal treatment accessories, chemical filtration mesh.

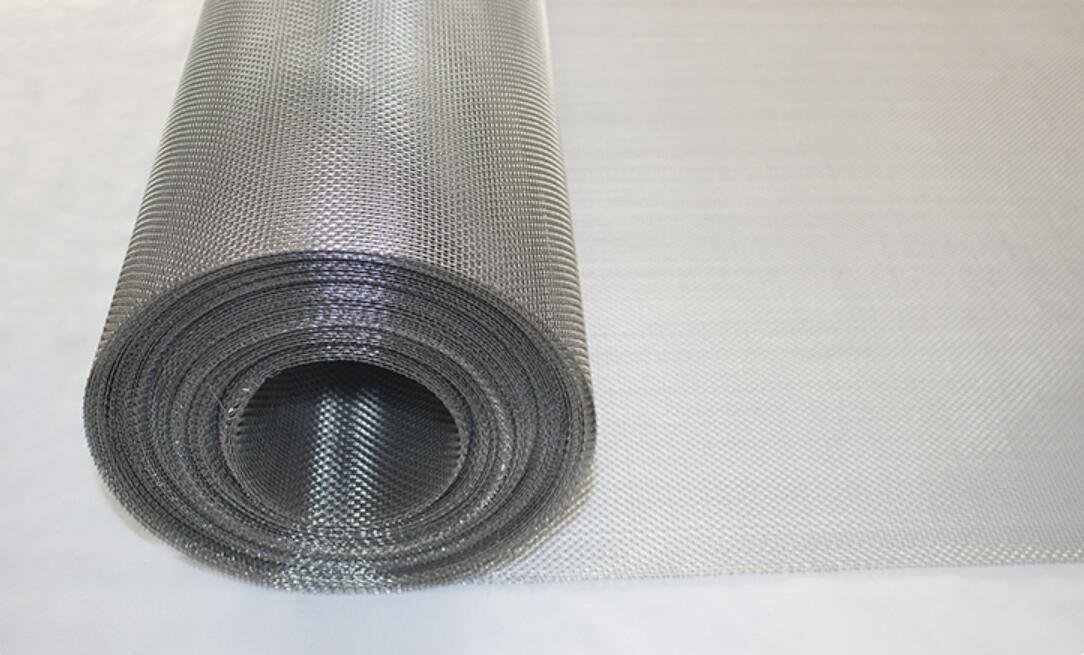

 High-Temperature Molybdenum Mesh

Material: Molybdenum-rhenium alloy wire

Mesh Count: 0.5-300 mesh

Wire Diameter: 2.0mm-0.035mm

Aperture: 50mm-0.035mm

Width: 10mm-6000mm

Weaving Method: Plain weave, Twill weave, Mat weave

Density: 10.22 g/cm³

Melting Point: 2610 ℃

Molybdenum Mesh Applications: Widely used in vacuum high-temperature furnace sintering neodymium iron boron support mesh, anti-corrosion connectors, structural components working in high-temperature environments, heating elements, integrated circuits, electronic cigarette gas filtration, aerospace, military, and other fields.

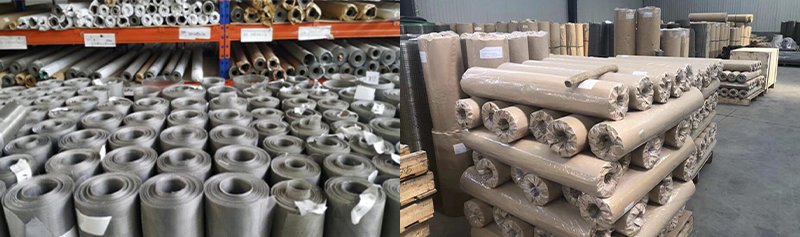

Our stock specifications

6 mesh, 10 mesh, 20 mesh, 40 mesh, 60 mesh, 80 mesh, 100 mesh, 200 mesh, 250 mesh.

How is mesh size converted?

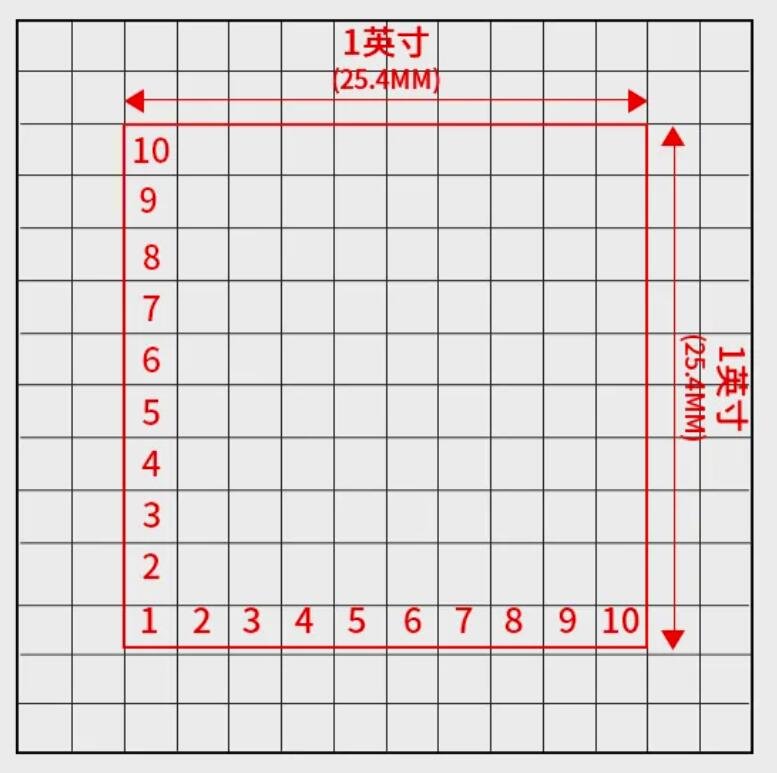

Mesh Conversion Table:

The number of mesh indicates how many holes are in a 1-inch length unit (25.4mm). For example, 10 mesh means there are 10 holes within a 25.4mm length unit.

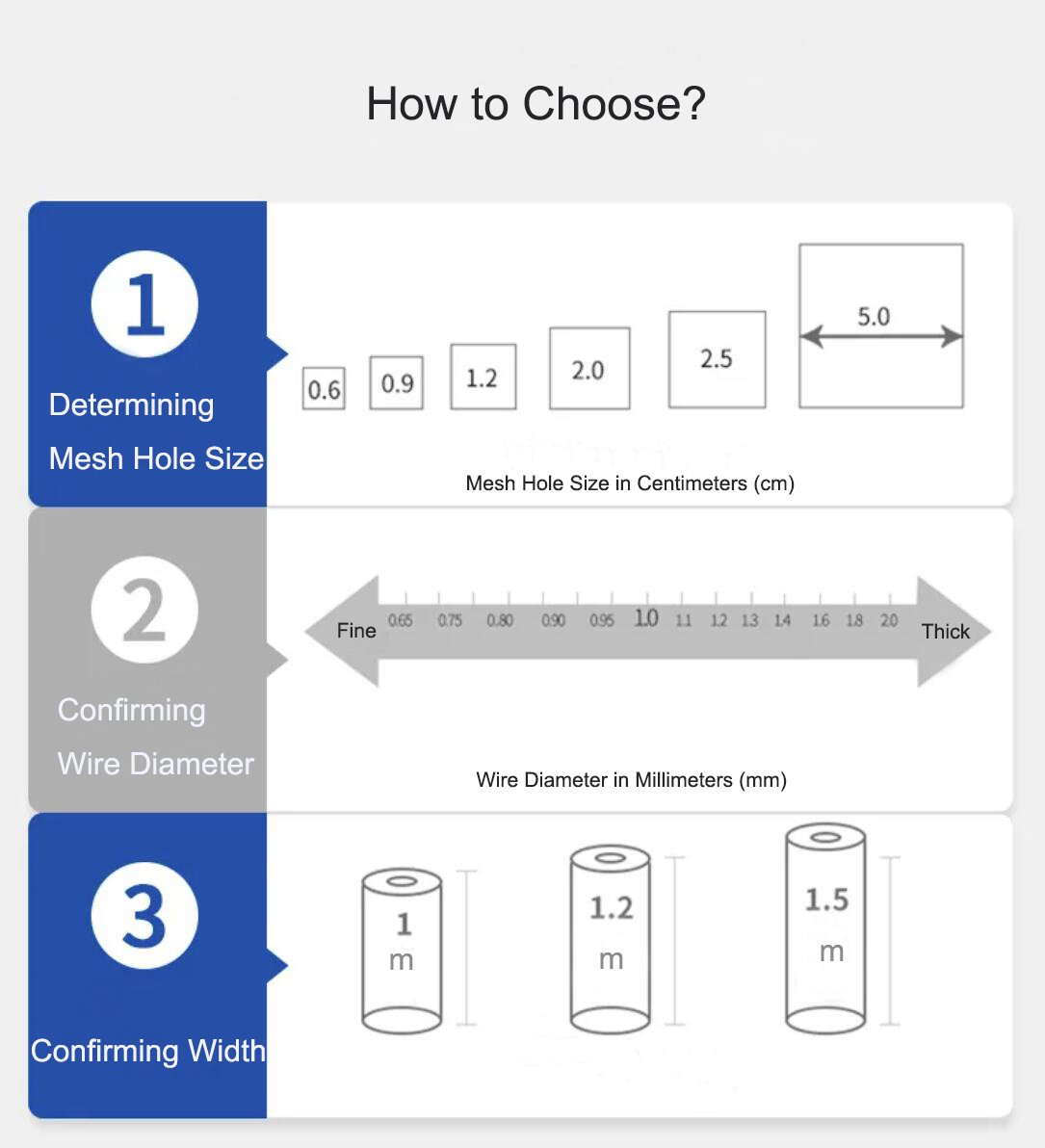

What Details Are Needed to Order Tungsten or Molybdenum Mesh?

When purchasing tungsten or molybdenum mesh, you need to provide the following parameters:

1) The size of the mesh holes;

2) The diameter of the tungsten or molybdenum wire;

3) The width of the tungsten or molybdenum mesh.
