Tungsten Copper (WCu) is a composite alloy consisting of tungsten and copper, commonly with a copper content ranging from 10% to 50%. Produced using advanced powder metallurgy, this alloy boasts:
Outstanding thermal and electrical conductivity
Exceptional high-temperature strength
Reliable plasticity and durability
When exposed to extreme temperatures exceeding 3000°C, the copper in the alloy vaporizes, effectively absorbing heat and lowering the material's surface temperature. This unique feature has earned it the name: Metal Sweating Material.
Here’s what makes Tungsten Copper your ultimate choice for extreme applications:
High-Temperature Resistance: Withstands temperatures up to 2000°C and high mechanical stress.
Durability: Features high hardness, excellent anti-wear properties, and resistance to adhesion.
Low Loss and High Precision: Provides smooth and precise surfaces during electrical discharge machining (EDM), with minimal material loss.
| Material Composition (wt%) | W-10Cu | W-15Cu | W-20Cu | W-25Cu | W-30Cu |
|---|---|---|---|---|---|
| Density (g/cm³) | 17.1 | 16.4 | 15.5 | 14.8 | 14.2 |
| Thermal Conductivity (W/m·K) | 191 | 198 | 221 | 235 | 247 |
| Thermal Expansion Coefficient (×10⁻⁶ K) | 6.3 | 7.1 | 7.6 | 8.5 | 9.0 |
Tungsten Copper’s versatility makes it a preferred choice for a wide range of demanding applications, including:

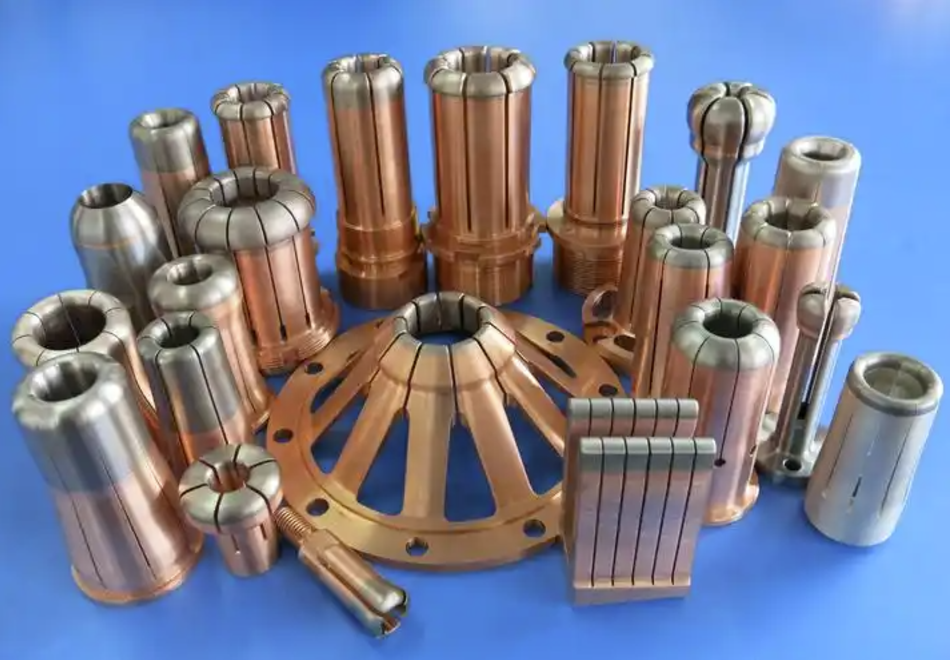

High-pressure and ultra-high-pressure switch contacts.
Circuit breaker contacts and protective rings.
Conductive nozzles for arc welding and plasma cutting machines.
Rocket nozzle throats and rudder components.
High-temperature mold components.
EDM electrodes for precision machining.
Spot welding, seam welding, and butt welding components.
Rolling welding wheels and ignition spark electrodes.

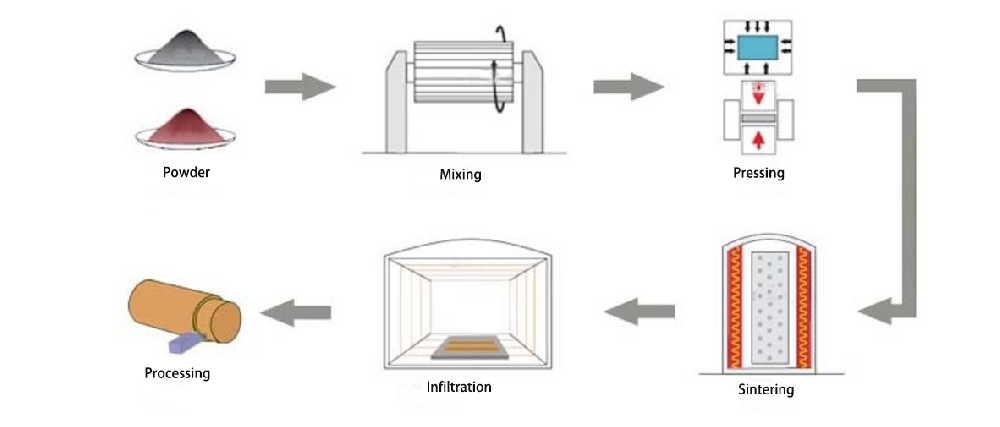

Produced using premium tungsten and copper powders combined with state-of-the-art infiltration and sintering technology, Tungsten Copper offers unmatched:
High melting point and strength.
Resistance to burn-off under high electrical loads.
Long-lasting performance under extreme thermal and mechanical stress.
Ready to Explore Tungsten Copper?
Whether you’re in aerospace, electronics, or manufacturing, Tungsten Copper is the material that ensures top-notch performance and durability. Click to learn more and discover how this incredible material can transform your projects.
